EVO8000AP Datasheet **TEST**

EVO8000AP  Datasheet














evolutiondigital.com

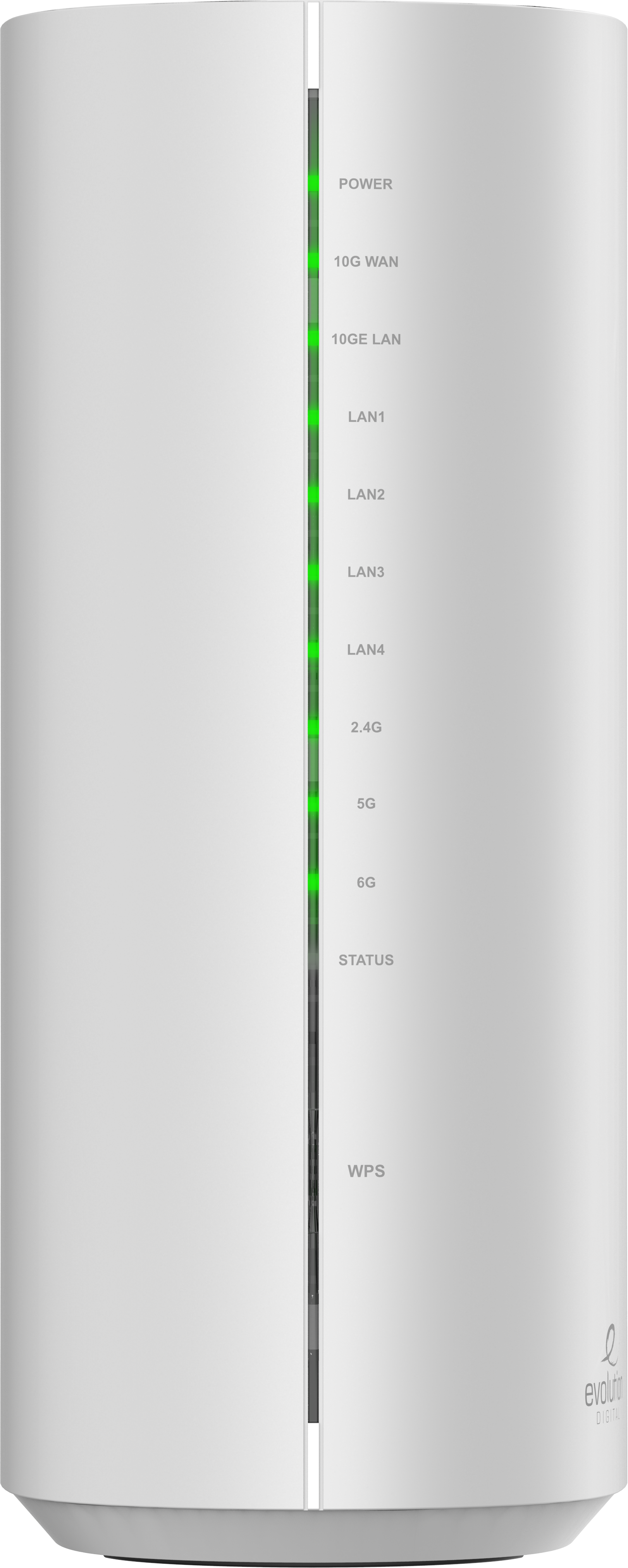

EVO8000AP Wi-Fi 7 AP dual-operational AP router and mesh beacon enables service providers to safely provide high-quality Wi-Fi to all locations in the subscriber's home, functioning as the main wireless AP in the home or as a mesh beacon to extend Wi-Fi coverage. By using 802.11be technology, customers enjoy faster and more stable services than before, ensuring flexibility in location and ease of installation.


Hardware
CPU:Quad-core @ 2.0 GHz
Memory:2GB DDR4
Flash:512MB NAND
Wi-Fi
Standard:Wi-Fi 7 (802.11a/b/g/n/ac/ax/be)
Band Config:Tri-band 4x4
Channel Width:20, 40, 80, 160, 320 MHz
Spectral Bands:2.4, 5, 6 GHz
Per Band PHY:1.38, 5.7, 11.5 Gbps
Peak PHY:18.58 Gbps
Peak QAM:4K QAM
Network Features
Protocols:IPv4, IPv6
WAN Types:Dynamic IP, Static IP, PPPoE
Wi-Fi Encryption:WPA2/3 Personal/Enterprise
WLAN:Guest Network
QoS:IEEE 802.1p
Software Features
Plume:HomePass, WorkPass, Haystack, Uprise, Harvest
OpenSync:OpenSync 6.6
CAF Support:SamKnows (via Plume)
Smart Wi-Fi:Intelligent Mesh, Band/Client Steering
Mode:Router or Bridge Mode
Interfaces
WAN:10GbE (x1)
LAN:10GbE (x1) / 1GbE (x4)
USB:USB 3.0 (x1)
BLE:Bluetooth 5.0
Physical Specifications
Size:9.4 x 7.4 x 3.1 in (240 x 190 x 80 mm)
Weight:2.5 pounds (1.13 kg)
Operating Temp:0C~40C (32F~104F)
Buttons:Power, Reset, WPS
Power Supply:External, 12V/4A
EvolutionLogo2012-light.png© Evolution Digital, LLC. All Rights Reserved. All values are typical unless noted otherwise. Specifications are subject to change without notification.
